μP7 (micro P7) is lightweight C library for sending trace/logs & telemetry data from your Micro-controller’s firmware to host/HW FIFO/cycle buffer/network/etc. for further analysis. It is designed to be integrated on almost every microcontroller, even with very limited resources.

The library is oriented on firmware developers (Bare-metal or RTOS) & real-time task. contains exhaustive documentation inside package.

Features:

• extremely low memory usage, (900 lines of code, no dynamic memory allocation, all traces/logs format strings are removed from compilation & binaries)
• μP7 instance – 408 bytes of heap + 264 bytes in .BSS
• 40 bytes of heap per trace/telemetry item (allocated at initialization)
• Speed is priority, library is designed to minimize time per trace/telemetry call, for example average performance for Intel i7-870 is:
• 15 million traces per second
• 23 million telemetry samples per second
• Unicode support (UTF-8, UTF-16, UTF-32)
• No external dependencies
• Different host's sinks (transport & storages) are supported:
• Network (Baical server)
• Binary File
• Text File (Linux: UTF-8, Windows: UTF-16)
• Console
• Syslog (RFC 5424)
• Auto (Baical server if reachable, else - binary file)
• Null
• Files rotation setting (by size or time)
• Files max count setting (deleting old files automatically)
• Remote management from Baical server (set verbosity per module, enable/disable telemetry counters)
• Trace & telemetry files have compact binary format (due to speed requirements - binary files much more compact than raw text), export to text is available
• Command line interface for configuration may be used in addition to application parameters
• Big/Little endian support
• Soft Microprocessors (MicroBlaze, Risc-V, NIOS), ARM, etc.
• GCC, Clang

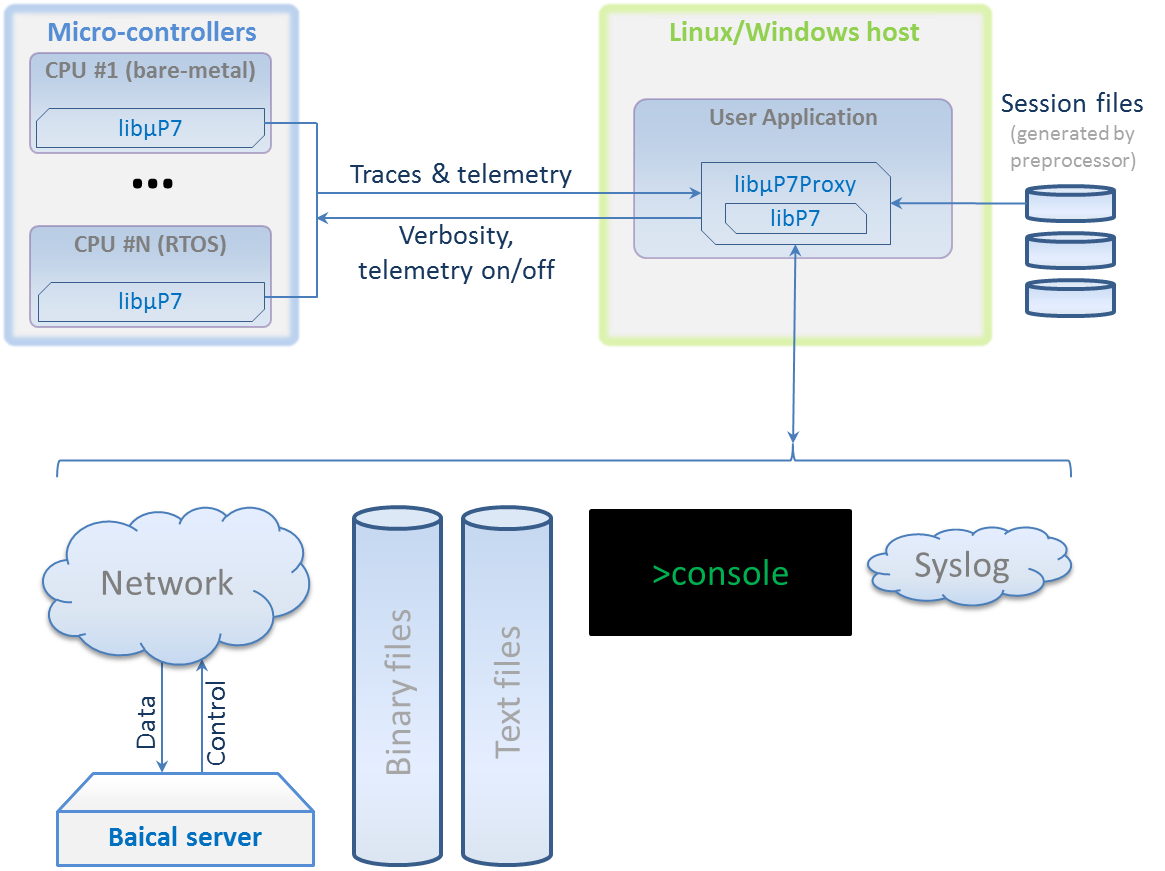

μP7 consist of next components/tools:

• μP7 library (will be part of user firmware)
• μP7 proxy library (will communicate with firmware from host and convert μP7 protocol to P7)
• μP7 pre-processor (will be used to pre-process firmware source code before compilation)

From software engineer’s point of view trace is a source code line (function with variable arguments list):

//...
uP7DBG(0, hModule, "Iteration %I64d", llIter);
//...

And at another side it looks like that:

It is very similar to logging, but unlike logging - trace gives your much better performance in term of CPU cycles and transmission data bandwidth. To reach best performance next optimizations are used:

• Do not format trace string on CPU side, variable arguments formatting is a heavy operation and it will be done on server side by request
• Do not transmit duplicated/redundant information, for example string "Iteration %I64d" won't be sent to host, it will be even stripped out from the firmware
• Deliver only changes for every subsequent trace call [variable arguments, sequence number, time with 100ns granularity, current thread, processor core number]
• Use binary protocol instead of sending text
• Use of pre-processor to collect all possible information in advance (file names, function names, code lines, etc.)

From software engineer’s point of view telemetry is a few source code lines:

huP7TelId  hCounter = uP7_TELEMETRY_INVALID_ID;
uP7TelCreateCounter("CPU/Cycle", 0, 0, 1, 1, true, &hCounter);

while (bProcessing)
{
    uP7TelSentSample(hCounter, 1);
    //some user code ...
    //...
    uP7TelSentSample(hCounter, 0);
}

And at another side it may looks like that (thread cyclograms, buffers sizes, delays, handles count, etc.):

Telemetry is a simple and fast way to record any dynamically changed values for further or real time analysis on Baical server side. You may use it for a lot of things: system statistics (cpu, memory, hdd, etc.), buffers filling, threads cyclograms or synchronization, mutexes, networks delays, packets sizes, etc. There are plenty of possible usage cases.
